Steps to upgrade the firmware of HP Virtual Connect Module using Virtual Connect Support Utility ( VCSU )

We need to download and install the HP utility-Tool called HP BladeSystem c-Class Virtual Connect Support Utility ( VCSU ) to upgrade the HP Virual Connect Flex Module .

By using the below link , download the tool and install it in your local machine.

http://h20565.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=5288598&swLangOid=8&swEnvOid=4138

Linux : http://h20564.www2.hpe.com/hpsc/swd/public/detail?swItemId=MTX_23f20c9a46da43d9a75aeb00af

Latest Version : http://h20564.www2.hpe.com/hpsc/swd/public/detail?swItemId=MTX_3b24f68469fb4090a82ea0f398#tab1

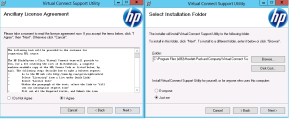

VCSU –  Installation Steps

hhp

hed

kd

Once the Installation is completed then open it using the command prompt or we can find it in the start-programs

hled

Depends on the model  download the latest firmware .

HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem.

http://h20565.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=5288598&swLangOid=8&swEnvOid=4138

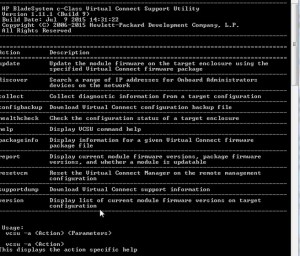

Use the below command to see the help and other option.

VCSU –a <Action>

 VCSU –a help

hgd

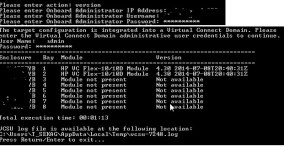

To check the current module Version

VCSU –a Version

 We need to provide the HP OA IP and its login.

Then it will ask for the Virtual Connect Domain login.

jd

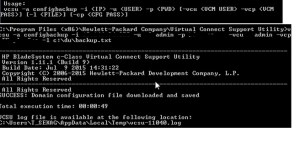

Next will show the steps to take the configuration backup.

knd

Steps to update the firmware

VCSU –a <Action >

 VCSU –a update

 Syntax

ned

Once provided the below command

VCSU –a update

It will prompt to connect the HP OA and we need to provide the username and password

Next we need to point the firmware download location.

7m

Next it will ask for the password for the backup and also if any force update option.

Since it is Optional and no need , Just give enter to move to the next step.

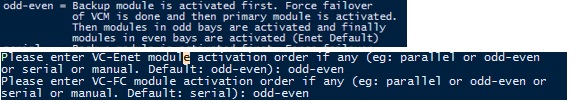

Next it will ask for VC-Ethernet \VC-Fiber Module activation order

Provide the default option ( odd-even )

0end

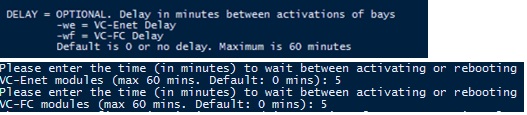

Next it will ask the wait time to activate of bays and reboot.

Provide it as per your environment need.

zd

Next it will prompt to connect the Virtual Connect Domain and we need to provide the username and password.

Wait for few seconds and then type ENTER

0old

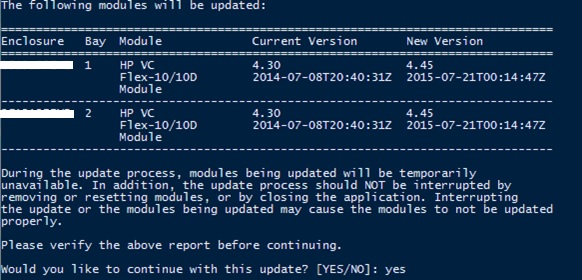

It will show the current version and the New Version

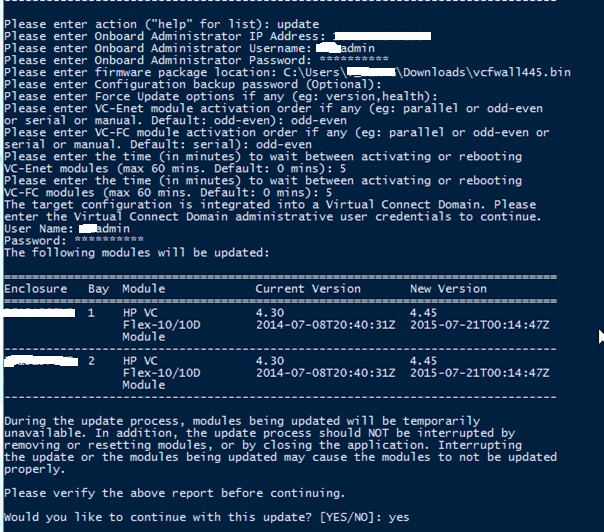

We need to confirm the update – type – YES

kl

Make sure to note the below warning

9iod

 Monitor the update , it will show the % below for the update

pmd

Once the update is completed , It will start the activation.

08d

 It was there for around 15 mins at 20% and noticed that one of the firmware it got activated ..

vcd

Almost after 25 mins and around 20% of the activation , found blades which is running on the enclosure stops pinging and all came up after around 5 mins.

So make sure the blades are configured with proper redundancy to avoid any downtime on blades.

xed

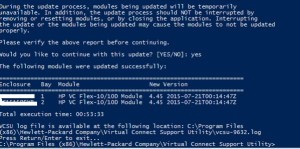

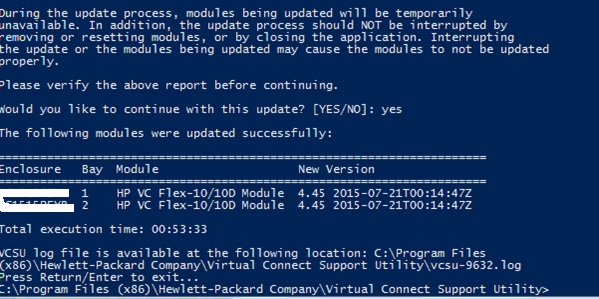

 After 45-50 Mins update has been completed

fullj

Reference :

https://h20565.www2.hpe.com/hpsc/doc/public/display?sp4ts.oid=3942029&docId=emr_na-c04567803&docLocale=en_US

http://h20564.www2.hpe.com/hpsc/doc/public/display?docId=c02616817

http://community.hpe.com/hpeb/attachments/hpeb/bladescategory04/540/1/Common%20Myths_2nd_edition_4AA0-4515ENW.pdf

http://h20565.www2.hpe.com/hpsc/doc/public/display?docId=emr_na-c03154250&lang=en-us&cc=us

http://h20565.www2.hpe.com/hpsc/doc/public/display?docId=emr_na-c02885443
