Creating a new Template for vSphere 6.0 to use for Machine SSL and Solution User certificate.

Pls check my previous blogs about the PSC , F5 PSC LB, vCSA installation and PSC AD configuration.

Login to the windows CA issuing server and type certtmpl.msc which starts up the Certificate Templates Console.

Go to the Templates folder , right click and select Manage.

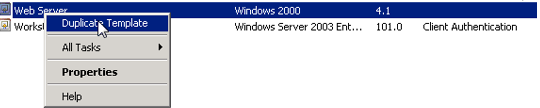

Look for the “Web Server” template , right click and duplicate it.

certd

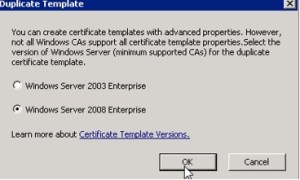

Make sure to select the proper template version according to the environment.

If you have an encryption level higher than SHA1, select Windows Server 2008 Enterprise.

eed

Click on the General tab and name it “vsphere 6.0”

ged

Click the Extensions tab.

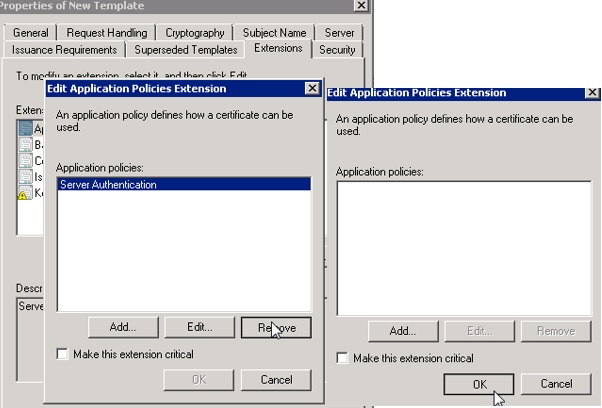

Select Application Policies and click Edit.

Select Server Authentication and click Remove, then OK.

titlegd

tl9ed

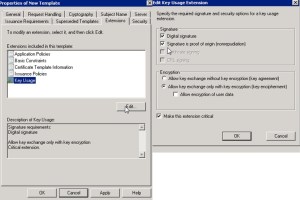

Next Select Usage, then click on Edit. Check the Signature is proof of origin (nonrepudiation) option. Leave all other options as default.Click Ok

r3d

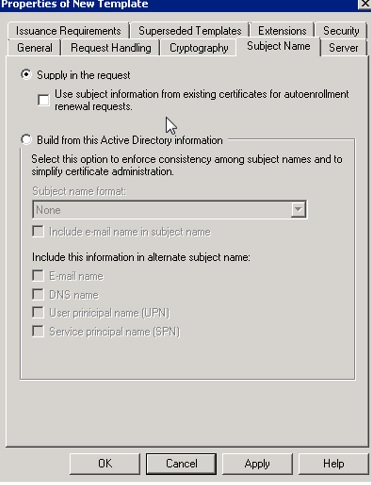

Click the Subject Name tab

Ensure that the Supply in the request option is selected.

Unti4tled

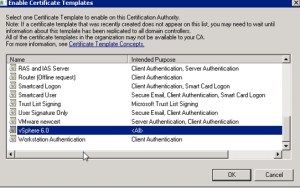

Run – MMC – Add certificate Authority – Right Click – certificate Templates – Find the vSphere 6.0 VMCA template and select it. Click OK.

7ed

1e4d

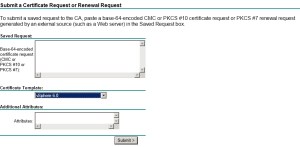

Once done you can see the new template in the certificate web console.

1e43d
