Trend Micro Deep Security Manager 9.6 – Installing the filter driver on ESX5.1 – Part 3

Check my previous blog for Trend 9.5 Installation and its features and also 9.6 update. In this blog we can see the steps to install the filter driver on ESX 5.X under Trend DSM 9.6.

Before going to the details , already in my other blog have details about the Trend Filter driver installation and upgrade steps and for 9.6 SP1 the installation steps is not that much different. Regardless if we using DSM v9.6, if the target host is running ESX 5.x then still we need the filter driver to “prepare” the host and deploy the corresponding DSVA 9.5.

Please refer to the attached screenshot (blue line)

DSVA-ESXi version mapping

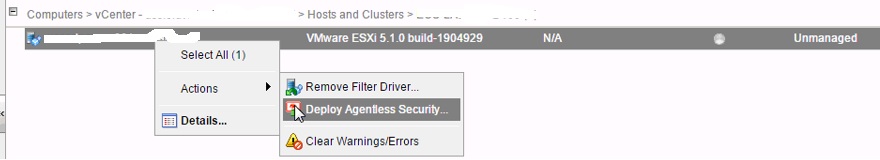

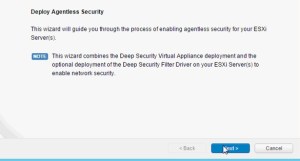

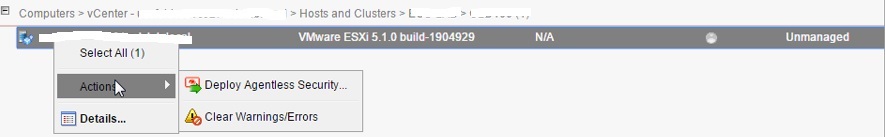

Right Click the host and Actions – Deploy Agentless Security

host

q1ed

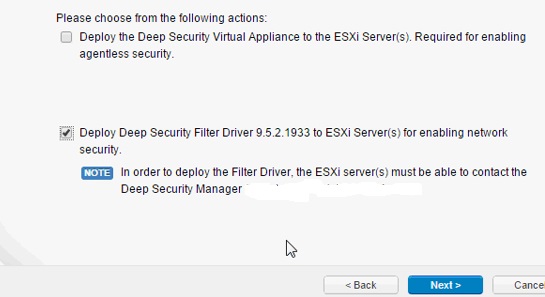

Choose the second options to install the Filter Driver.

q2ed

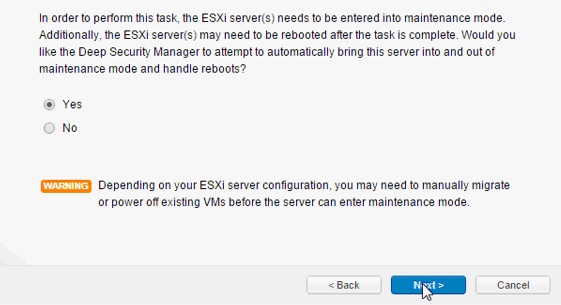

Select to put the ESX host in to MM.

djj

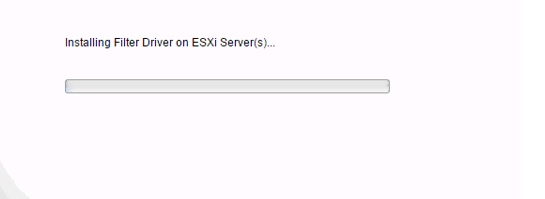

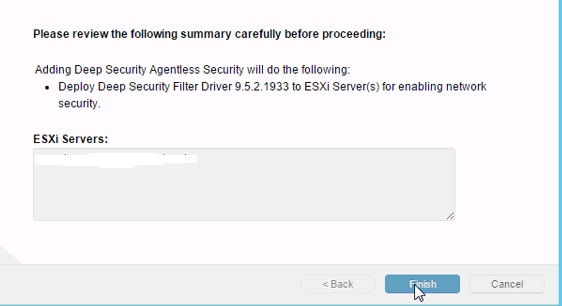

It will ask to review and confirm.

qdjj

6ed

It will reboot the ESX Host.

6ekd

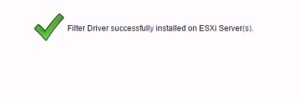

done

Once it is done , proceed with vsheild driver and then DSVA Installation.

wqd

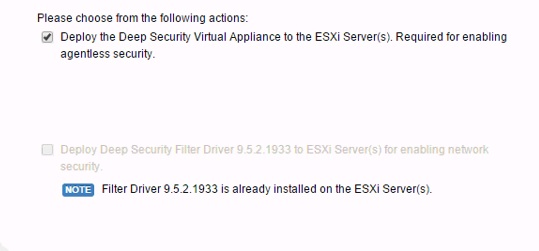

Note the filter driver option will be grayed out now and only it will show the DSVA installation option.

fil

If the ESX version 6.X then it wont show the option to install the filter driver and directly it will go for the DSVA installation.
