Trend Micro Deep Security 9.5 ( Filter Driver and Deep Security Virtual Appliance – DSVA Upgrade ) – Part 14

Pls check my previous blogs for the DSM , Relay Server , vShield End Point , Filter Driver,DSVA, DSA , SSP Server , Policies and Exclusions , Events and Monitoring , VMtools and VDI Environment with Agent Protection and Agentless Protection ,Trend DPM Service Pack and Relay Server Upgrdae.

Update:2\27\2016

Check the blog to install the filter driver on ESX5.x under Trend DSM 6.0 SP1

In this blog we can see the Trend Filter Driver and Deep Security Virtual Appliance – DSVA Upgrade.

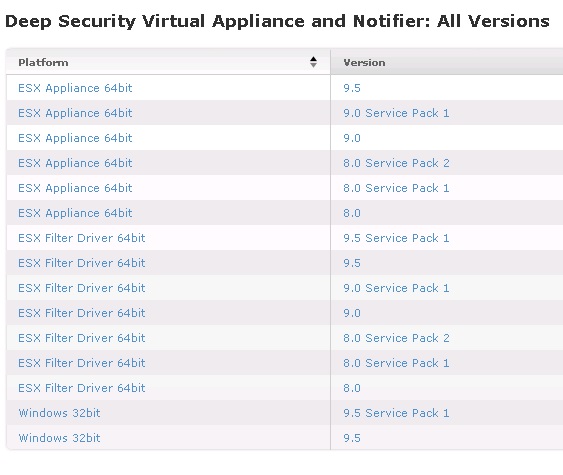

Download the updated Filter Driver from the below link.

http://downloadcenter.trendmicro.com/index.php?regs=NABU&clk=result_page&clkval=drop_list&prodid=1081

dsvau1

In the DSM Console – Go to Administration > Updates > Software > Local

dsvau2

Click Import

dsvau3

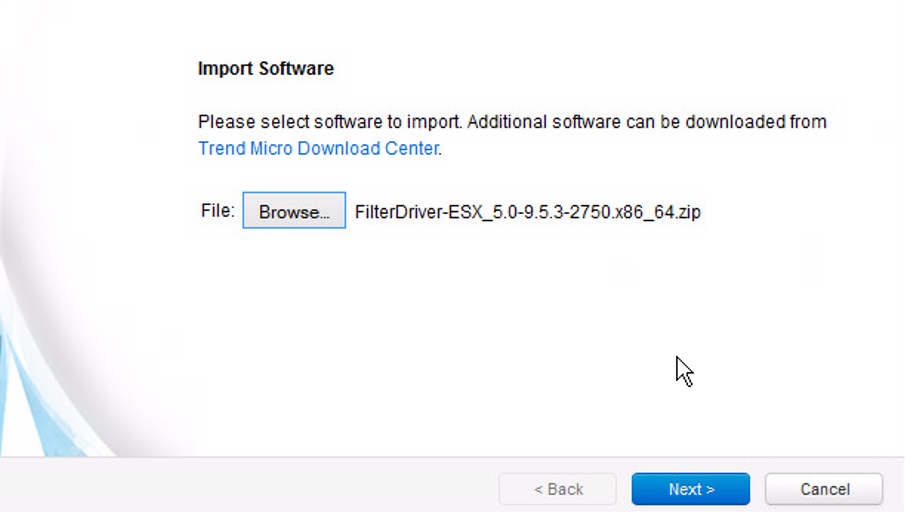

Browse to the location where the Filter Driver was downloaded to and select the same.

dsvau4

Click Next

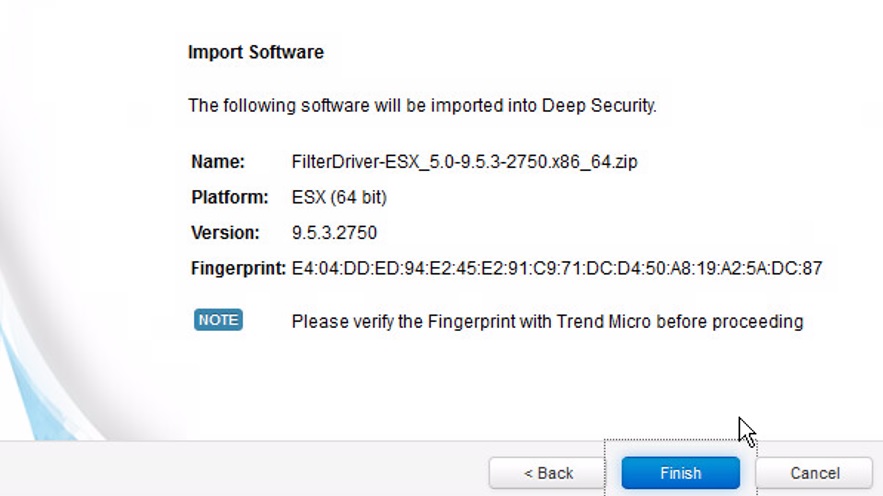

dsvau5

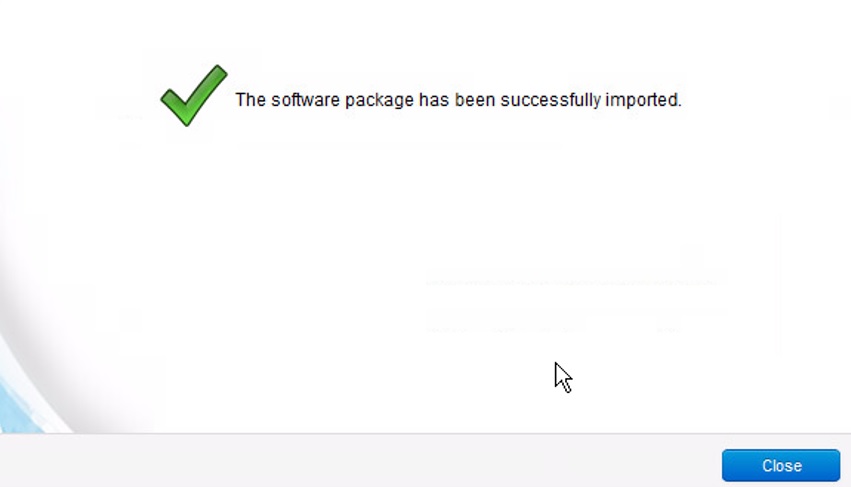

Click Finish and Close.

dsvau6

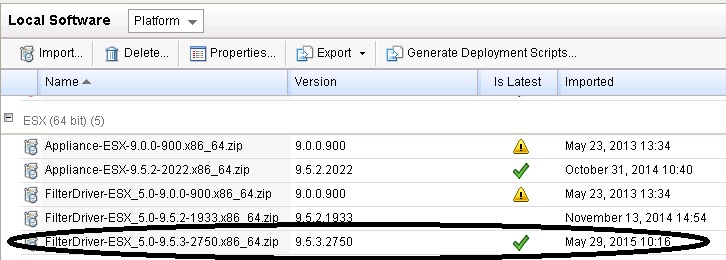

We can see the newly imported Filter Driver available in the Local Software.

dsvau7

Updating the ESX Hosts with the updated Filter Driver.

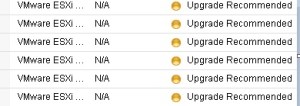

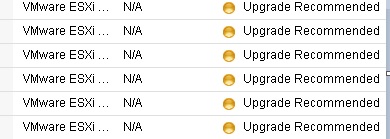

Once uploading the Filter Driver , we can notice the ESX hosts will show a status of “Upgrade Recommended ”

dsva8u

To Upgrade the ESX Hosts – Select the Hosts – Right Click – Select Actions – Upgrade Filter Driver.

dsvau9

Click Next.

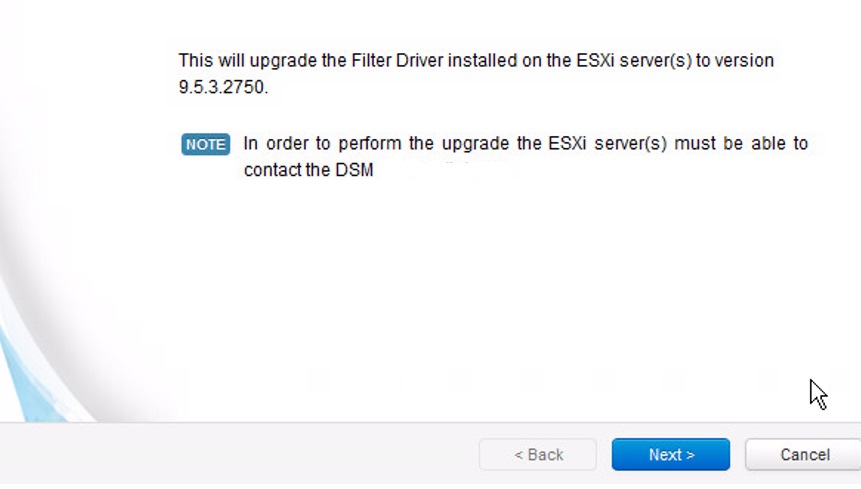

dsvau10

dsvau11

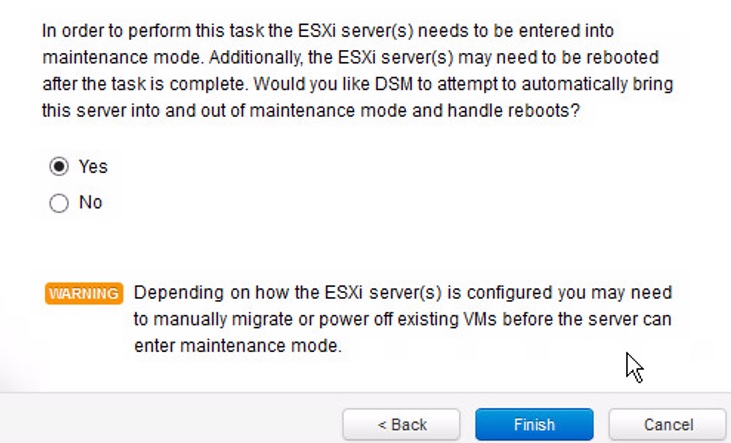

ESX will be put in to Maintenance Mode.

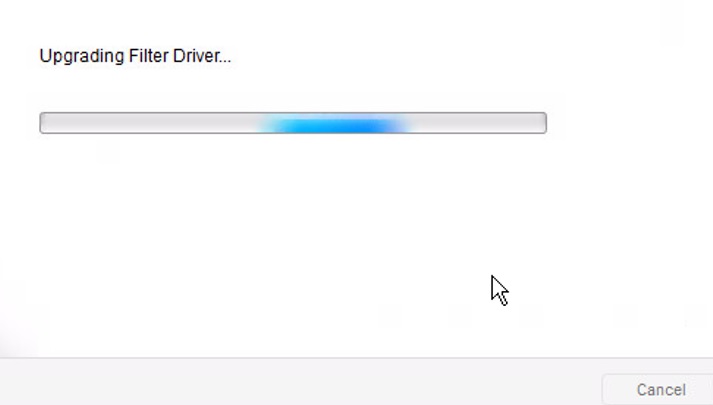

dsvau12

Close when finished.

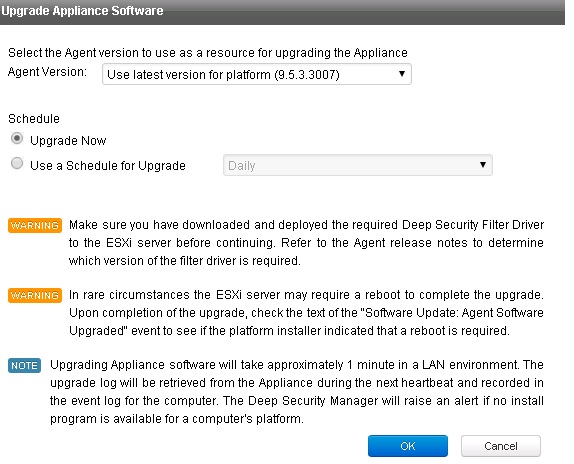

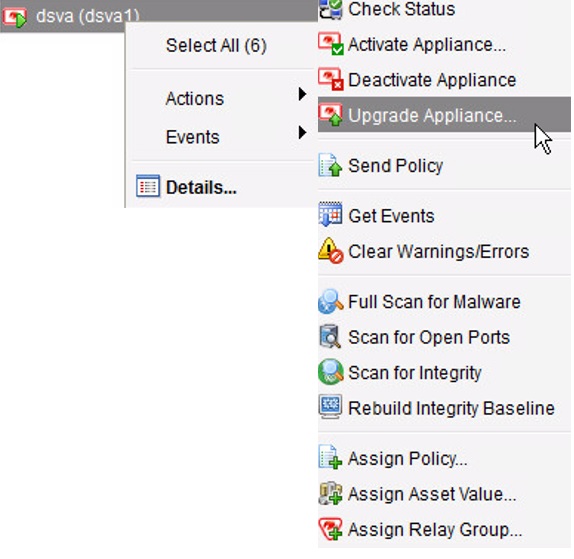

To upgrade the DSVA, it is a similar process.  Right-Click on the DSVA(s) you wish to upgrade > Select Actions > Upgrade Appliance

dsvau13

dsvau14

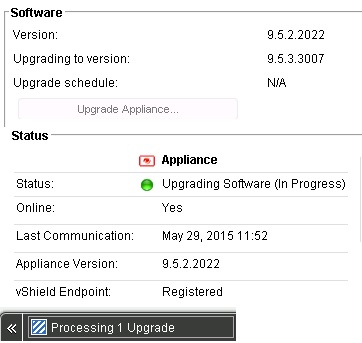

dsvau15



Once done we can see the updated version of the DSVA.

Related Links:

https://techbrainblog.com/2016/02/27/trend-micro-deep-security-manager-9-6-installing-the-filter-driver-on-esx5-1-part-3/
