How to enable monitoring for the vShield Endpoint communication with ESX module.

Pls check my other blogs about Trend DSM 9.5 and 9.6  and here we can find how to enable the monitoring for the vShield Endpoint when it lost communication with ESX module.

Login to the VC which vShield Manager is connected.

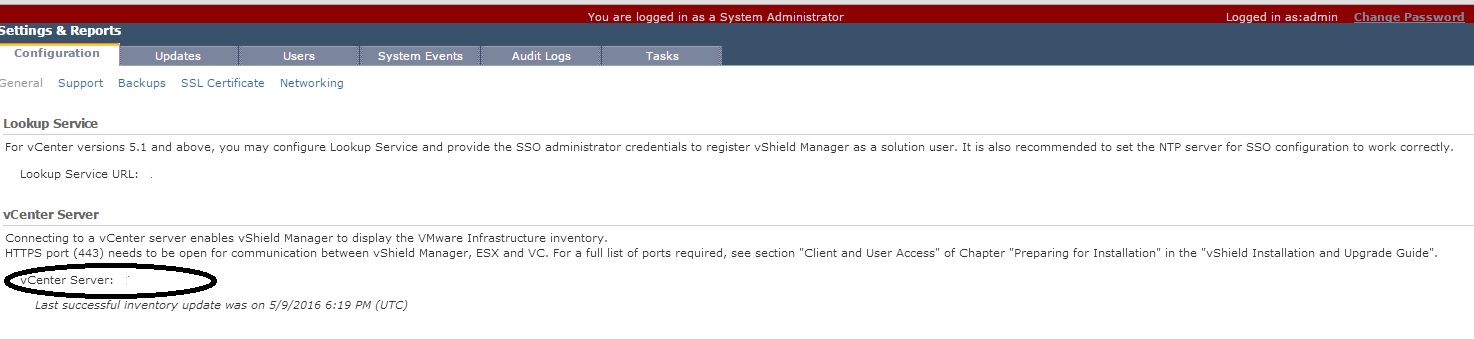

we can find the VC name from the below location.

newweb

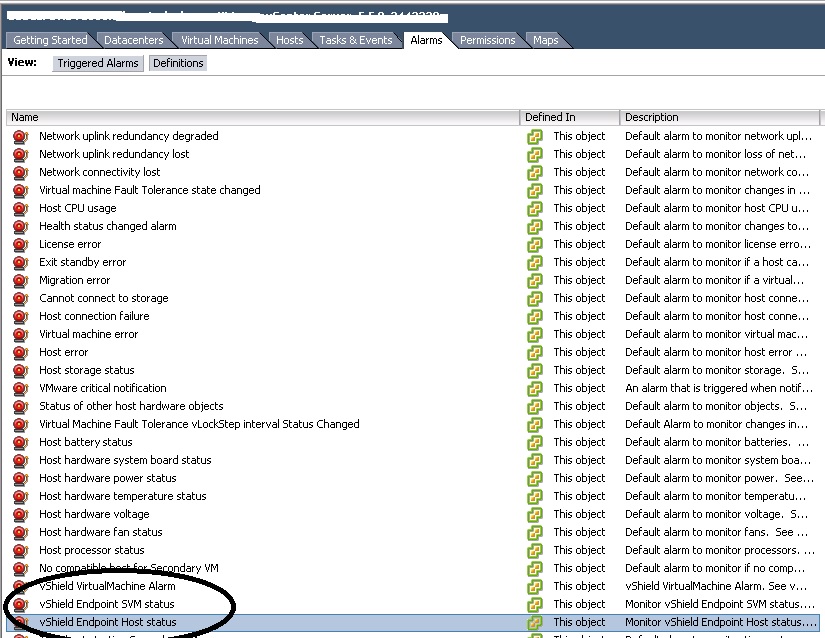

Select the Alarms tab from the vCenter level – vSheild Endpoint Host Status.

web3

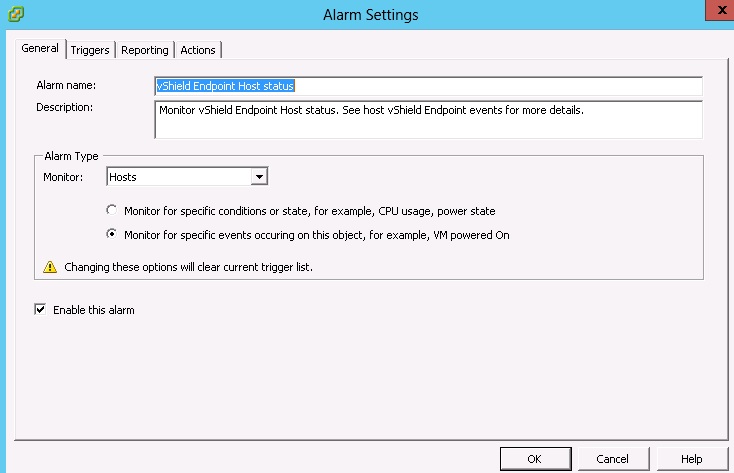

In General we can see the below info and make sure to have Alarm type as HOSTS

web4

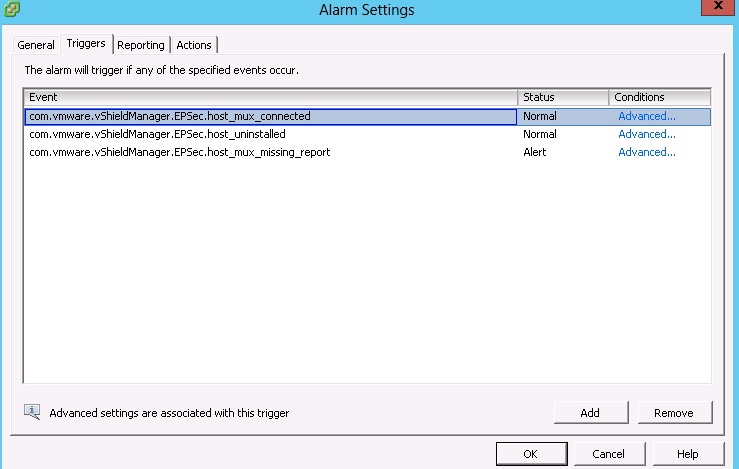

Next tab , make sure we have the selected the event type.

web5

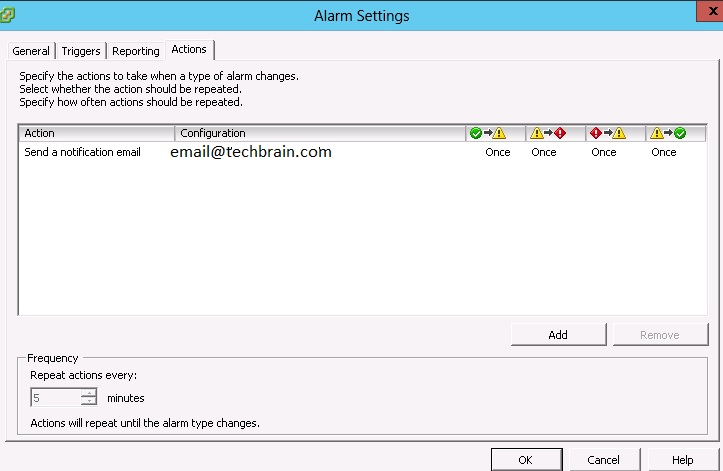

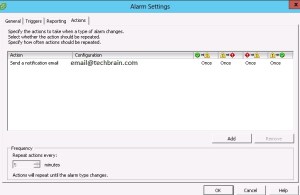

In Action tab add the notification email when we should get the alert .

For ex I have selected from Green – yellow , Yellow – Red , Red – Yellow , yellow – Green.

web6

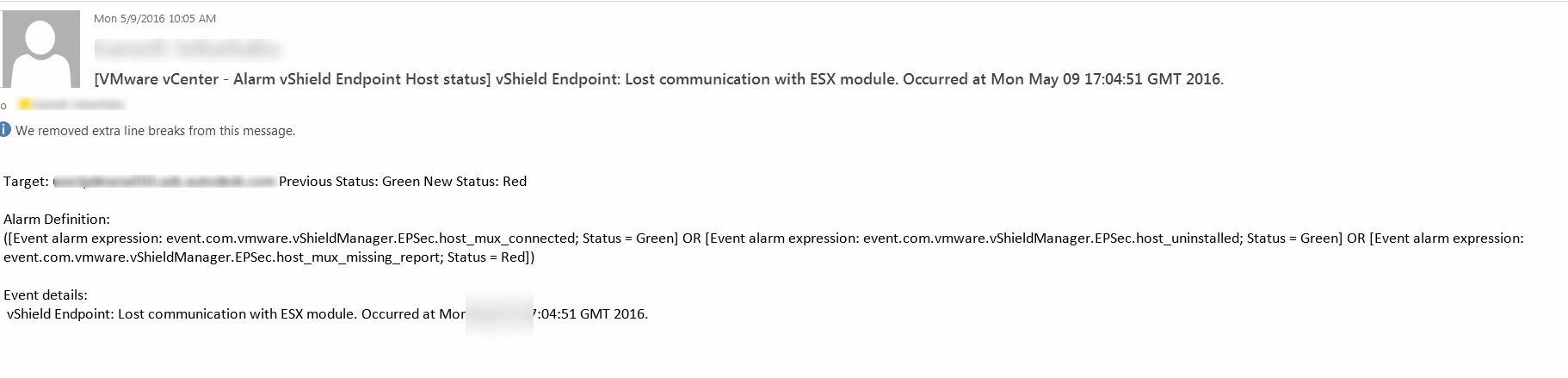

when the alert triggers , we will get the mail in the below format .

web7_censored

Reference :

http://esupport.trendmicro.com/solution/en-US/1095445.aspx

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2021886
