We have noticed the packet drop on all of our HP BL460c Gen 9 \ Gen 10 across the region which is running ESXi, 6.7.0, 16316930 and the Network adapter presently installed on the server is HPE FlexFabric 10Gb 2-port 536FLB Adapter which is Qlogic Adapter.
Version which comes with the HP custom image includes the qfle3 driver version 188.8.131.52-1OEM.6184.108.40.20698673 and We have tried updating the driver \ firmware of the HP Enclosure \ OA \ Virtual Connect to the below versions but didn’t fix the issue.
OA Firmware : 4.96
3.. Upgrade the Virtual connect firmware on one switch and another switch.
HP Virtual Connect Firmware: 4.85
After a lot of options tried, HP has recommended installing the below driver version and packet drop issue has been fixed.
[root@esx106:~] esxcli software vib install -v “/cp039955/QLogic-Network-iSCSI-FCoE-v2.0.102-14793946/QLogic-Network-iSCSI-FCoE-v2.0.102-offline_bundle-14793946/vib20/qfle3/QLC_bootbank_qfle3_220.127.116.11-1OEM.618.104.22.16869922.vib”
Message: Host is not changed. Reboot is pending from previous transaction.
Reboot Required: true
VIBs Skipped: QLC_bootbank_qfle3_22.214.171.124-1OEM.6126.96.36.19969922

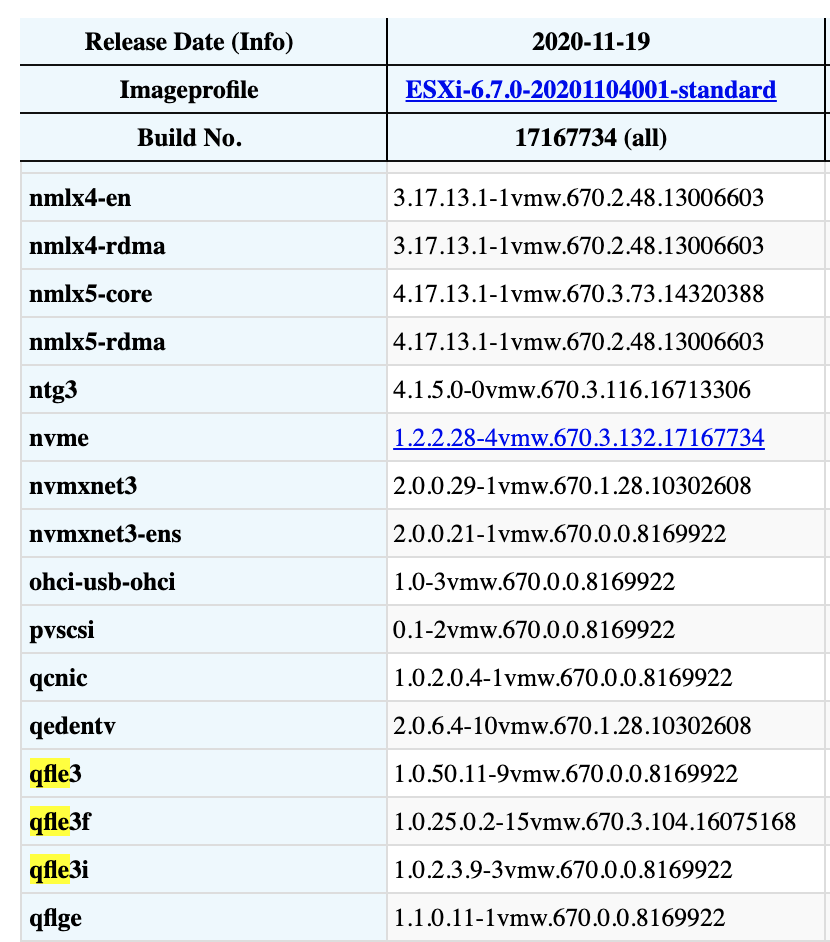

I think as per the ESXi Patch advisory it is mentioned QFLE3 is 188.8.131.52-9vmw.6184.108.40.20669922 so we need to have something near to the version and once installed the driver recommended by HP which is 220.127.116.11-1OEM.618.104.22.16869922 fixed the issue for us.
How did you see the packet drop? What tool were you using?
esxcli network nic stats get -n vmnic0 by running this command in ESXi for all the nics we can find the stats of the packets and also noticed it in vROPs ..
