Trend Micro Deep Security 9.5 ( Policies and Exclusions ) – Part 8

Pls check my previous blogs for the Trend  DSM , Relay Server , vSheild Endpoint, Filter Driver , DSVA, DSA and SSP Server. In this blog we can see the policy creation and applying it in the VMs with the exclusion list.

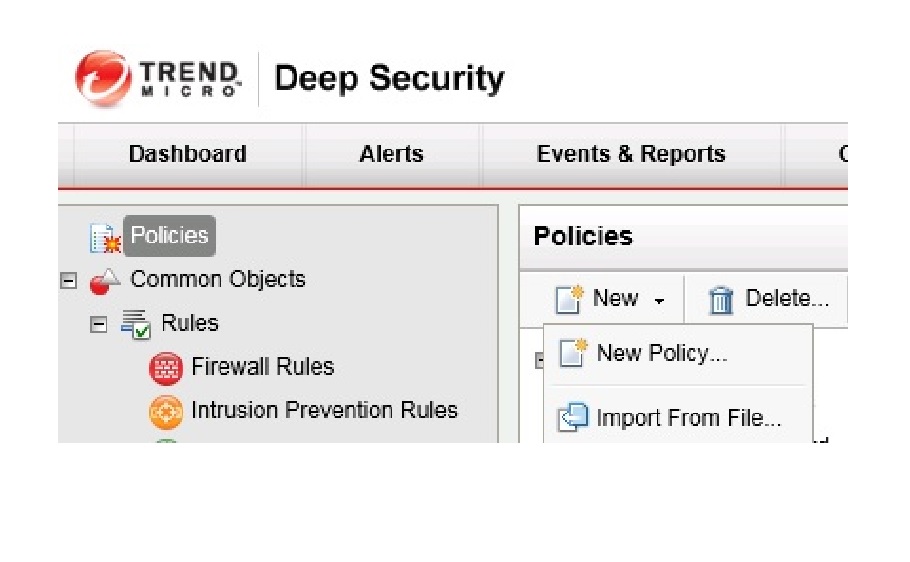

To create the Policy in the DSM go to the the Policy tab.

Policies – Click New Policy

Pol1

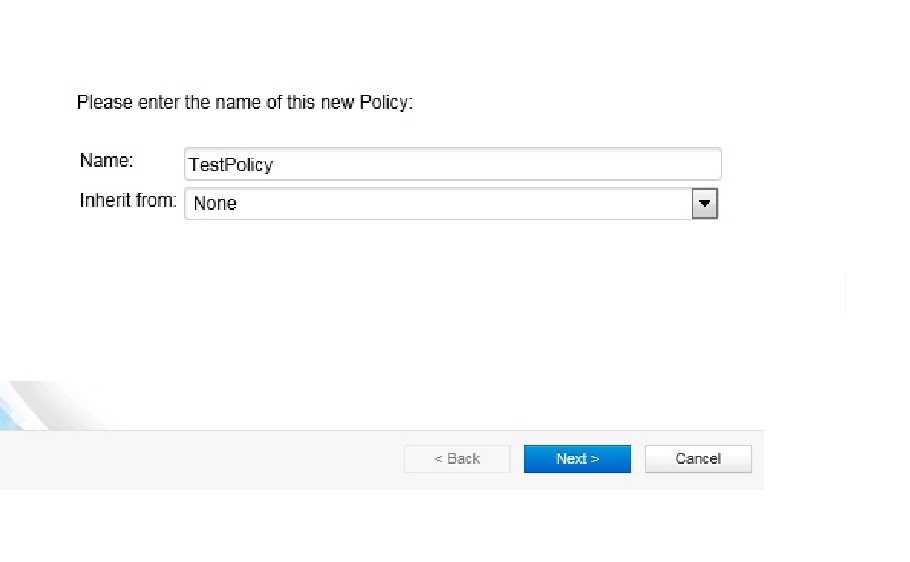

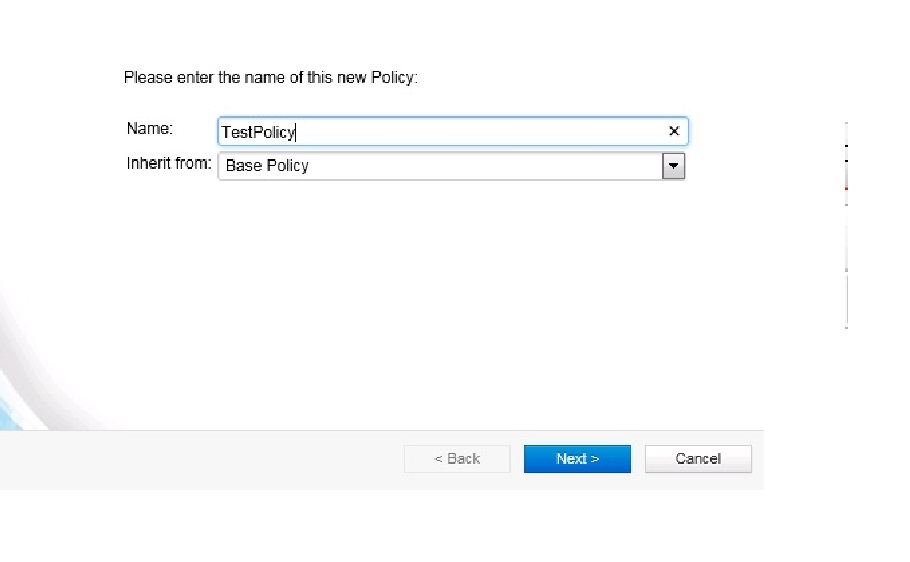

Give the name for the Policy and we can choose the base policy as inherit or None.

Pol2Pol3

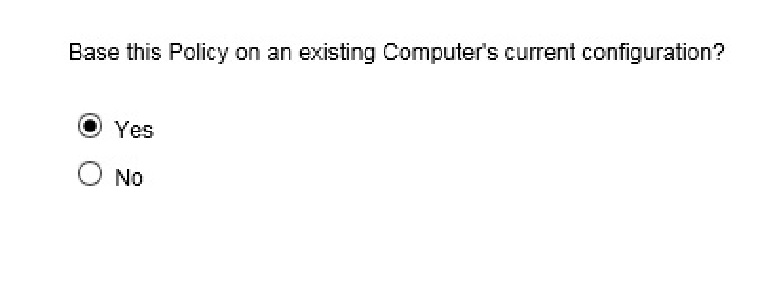

We can place the new policy to the computers directly.

Pol4 pol5

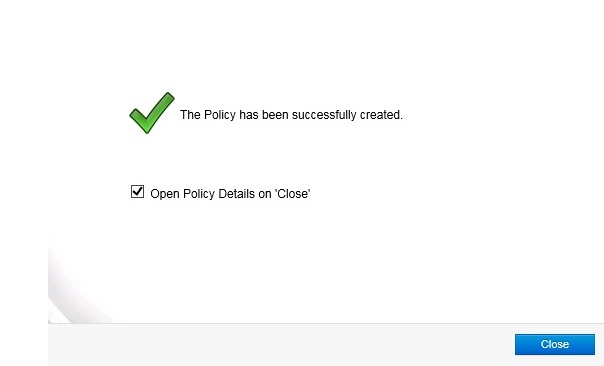

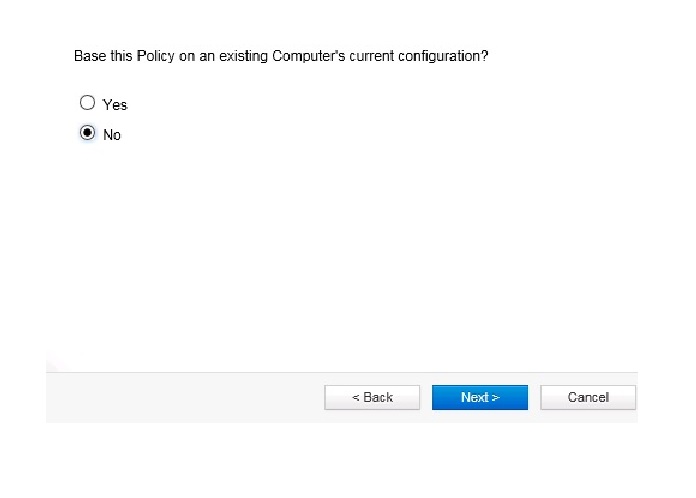

In Case if we choose NO then we need to select the policy from the computer console.

pol6pol7

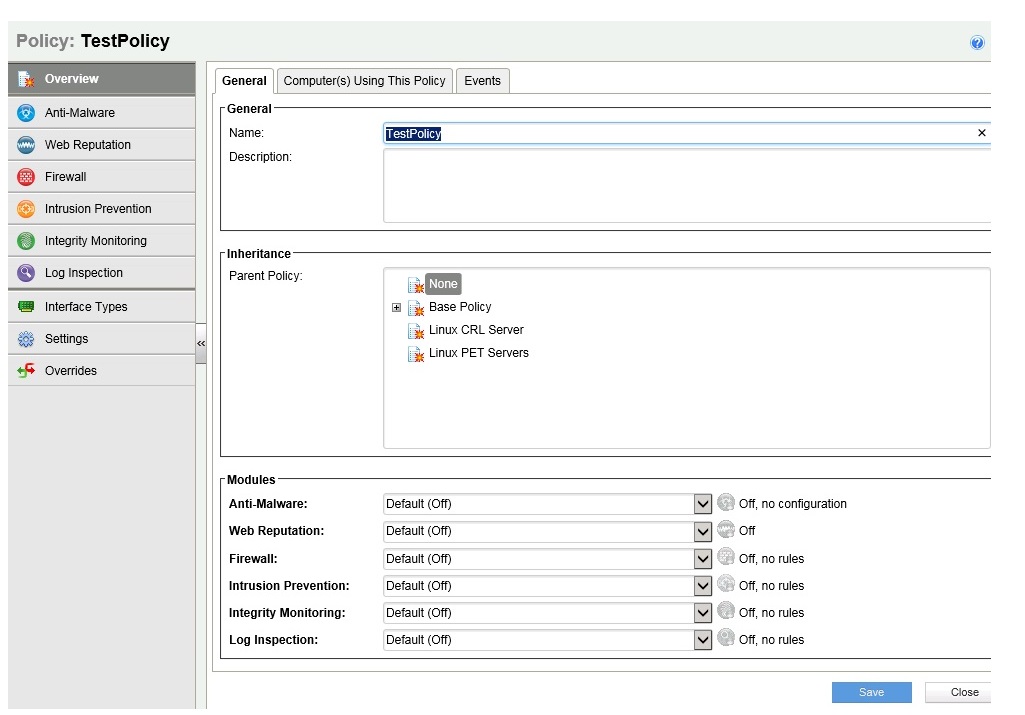

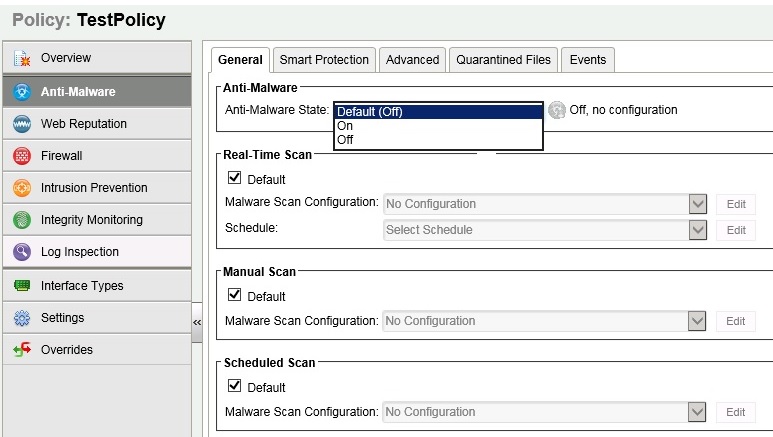

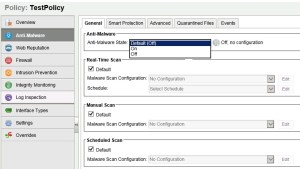

Next we need to enable the Anti-Malware and other protection on the policy.

pol8

Pol9

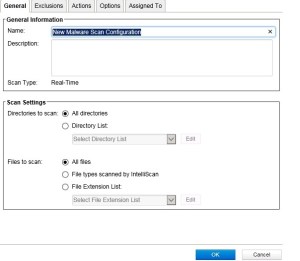

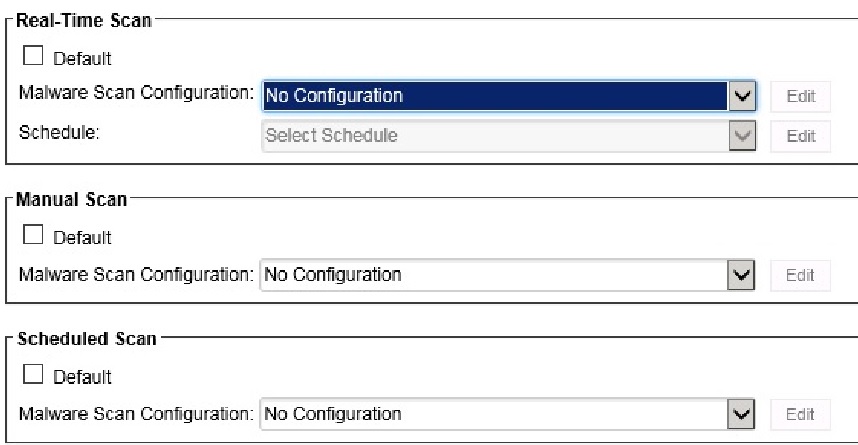

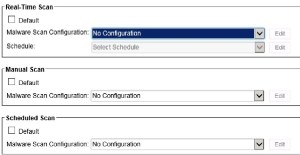

Next Remove the Default from the Real-Time Scan option and Select the Malware Scan configuration.Click Edit and create the new Exclusion Rule.



Pol10

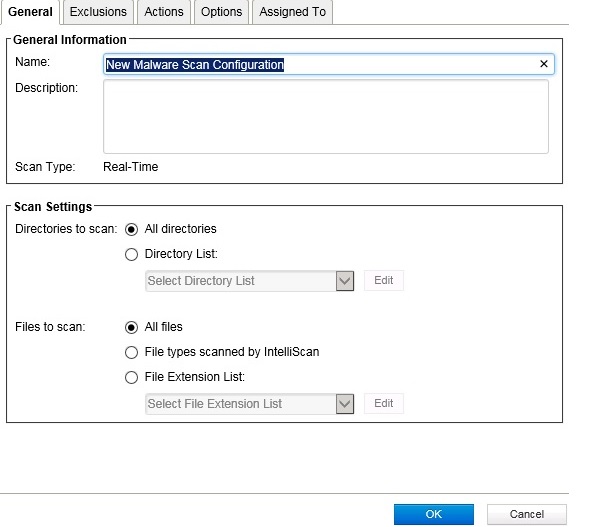

In Schedule always recommended to have it Every Day All Day option for the Real-Time Scan.

Pol10

Pol11

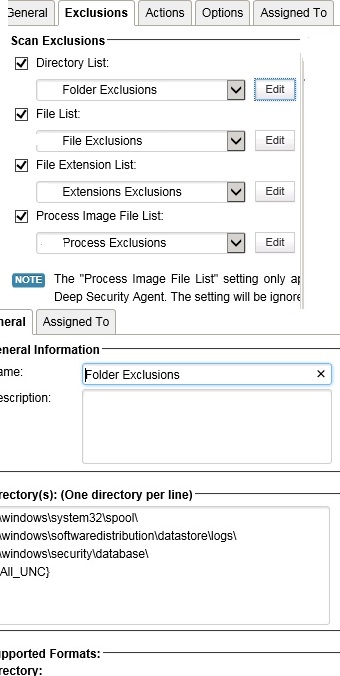

Select the Files and Folder as per our company scan exclusion policy.

Pol12

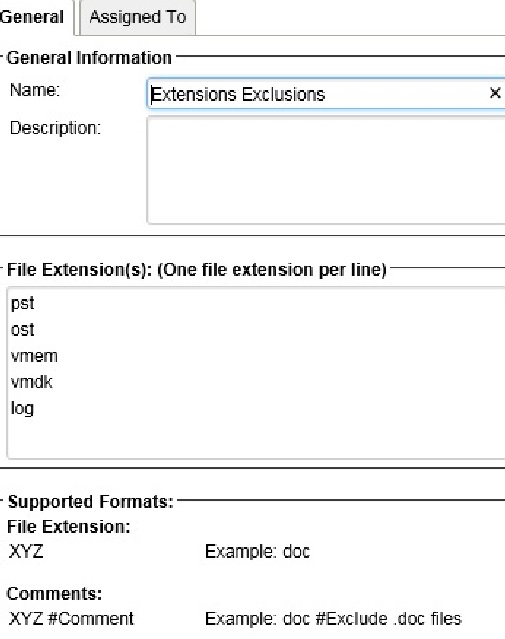

Select the Extension Exclusion and the files extensions as per the requirements .

Pol14

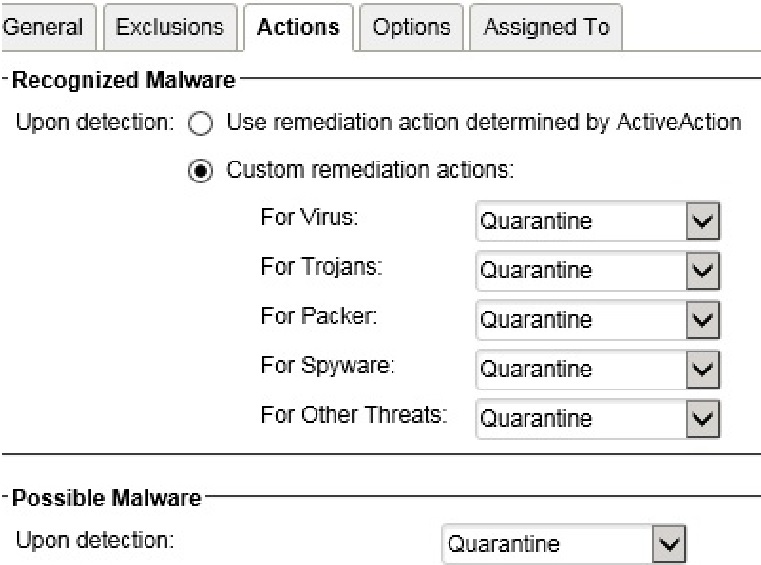

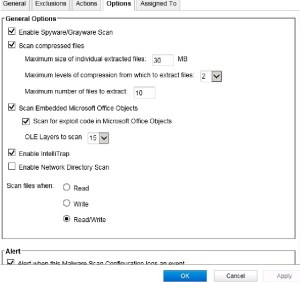

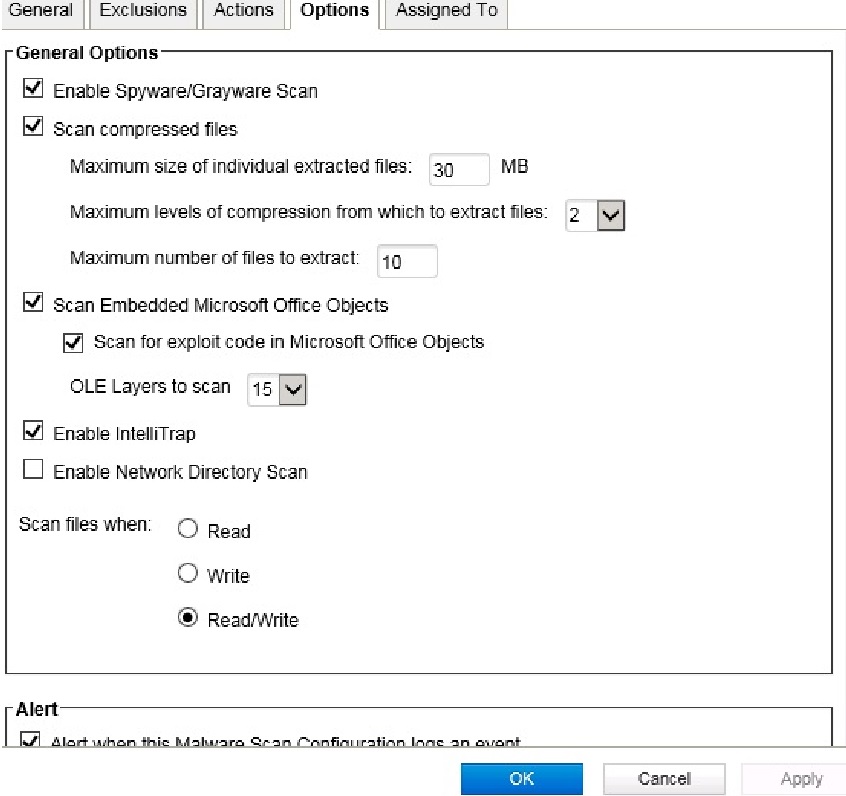

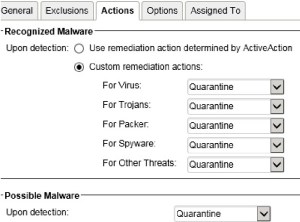

Next Select the Actions and choose appropriate actions .

Pol15 Pol16

Once the policy is set then next go the computer and select the computer in which policy have to be applied.

Note that  we can apply the policy to the group of computers also.

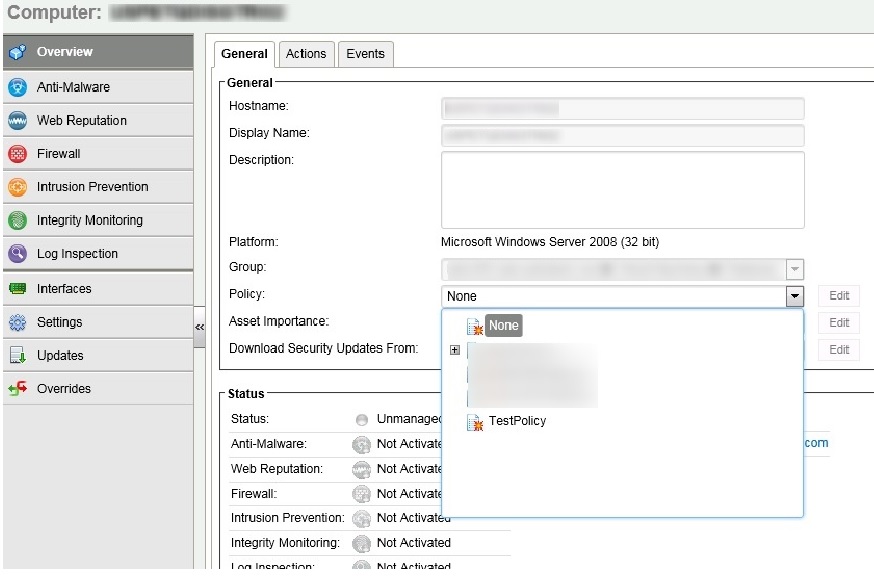

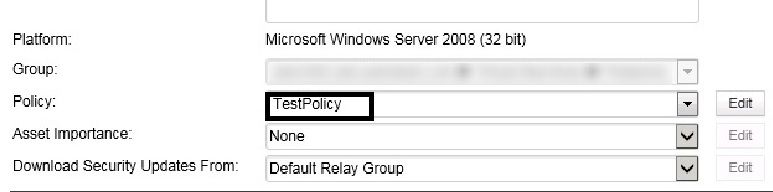

Go to the General – Policy – Select the Policy which we created ( TestPolicy )

Pol17 Pol18

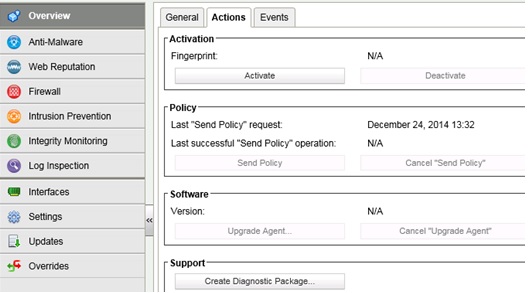

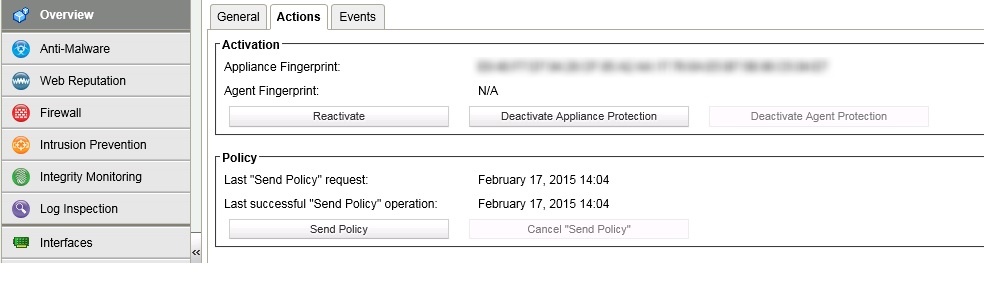

Next Go to the Action tab and Activate the VM.

activate

act1

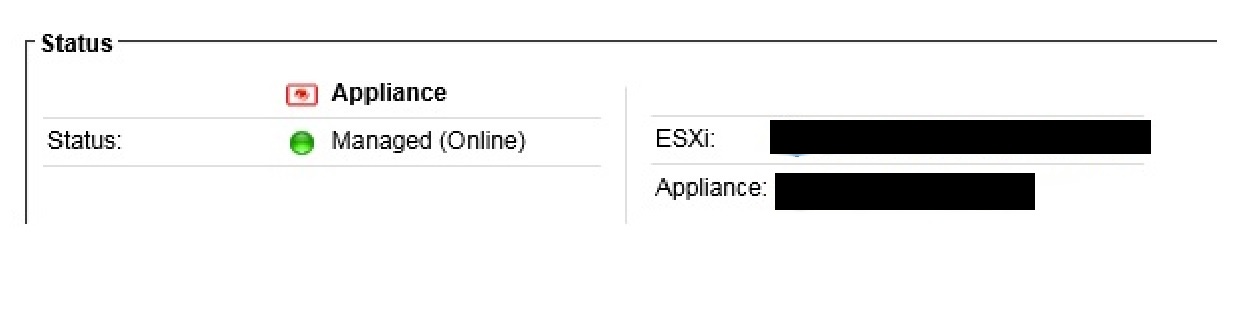

We can check the status in the General – Status section which will show the corresponding ESXi and the DSVA information.

1111_censored

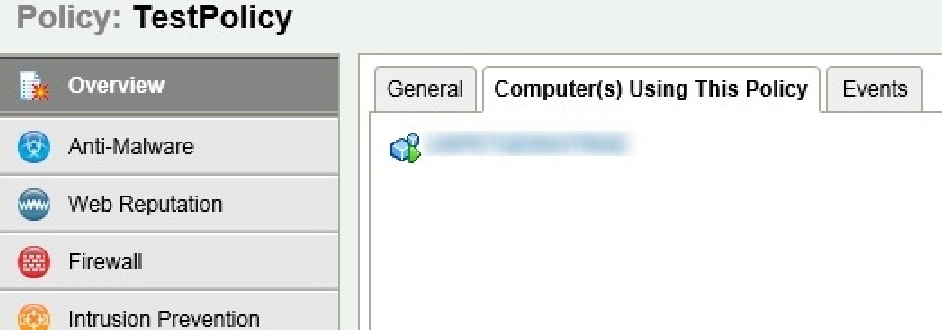

Once the policy is applied , We can see the computers using the policy in the Policy tab.

Pol21



Pls check the below KB for excluding UNC Path.

http://esupport.trendmicro.com/solution/en-US/1096634.aspx

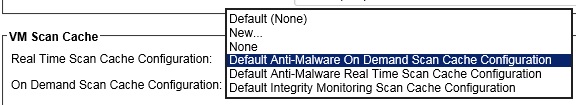

Scan Caching

Scan Caching improves the efficiency of on-demand scans performed by the Virtual Appliance. It eliminates the unnecessary scanning of identical content across multiple VMs in large VMware deployments.

In addition,

• Integrity Monitoring scan caching speeds up Integrity Monitoring scans by sharing Integrity Monitoring scan results.

• Anti-Malware on-demand caching speeds up scans on subsequent cloned/similar VMs

• Anti-Malware Real-time caching speeds up VM boot and application access time

• Concurrent Scan feature allows further overall scan time improvement by allowing multiple VMs to be scanned concurrently

scan cach

In the next blog we can see the VMtools installation with vShield Endpoint driver installation .
