Trend Micro Deep Security 9.5 ( VDI Environment-Agentless Protection ) – Part 12.

Pls check my previous blogs for the DSM , Relay Server , vShield End Point , Filter Driver,DSVA, DSA , SSP Server , Policies and Exclusions , Events and Monitoring , VMtools and VDI Environment with Trend Agent. In this blog we can see the Trend DPM with VDI Enivronment running VMware in the background with Agentless protection.

Same like Agent Protection we have to prepare the Golden Image first to provisioning the VM from the Image.

We need to ensure/install the complete VMWare tools with Endpoint Driver on the Golden Image.  This is required for Deep Security to provide agentless protection.

We need to uninstall Microsoft ForFront and any other 3rd party anti-malware software from Golden Image as this will cause scan contentions.

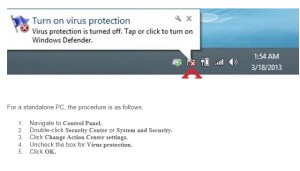

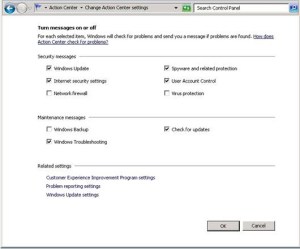

Since Trend or other AV software wont be installed in the Golden Image , we have to disable Windows Security Center anti-virus notifications for vShield Endpoint.

scr

scr2

From the DSM end make sure the below option is enabled and all the ESX hosts are activated with the filter driver with DSVA.

scr3

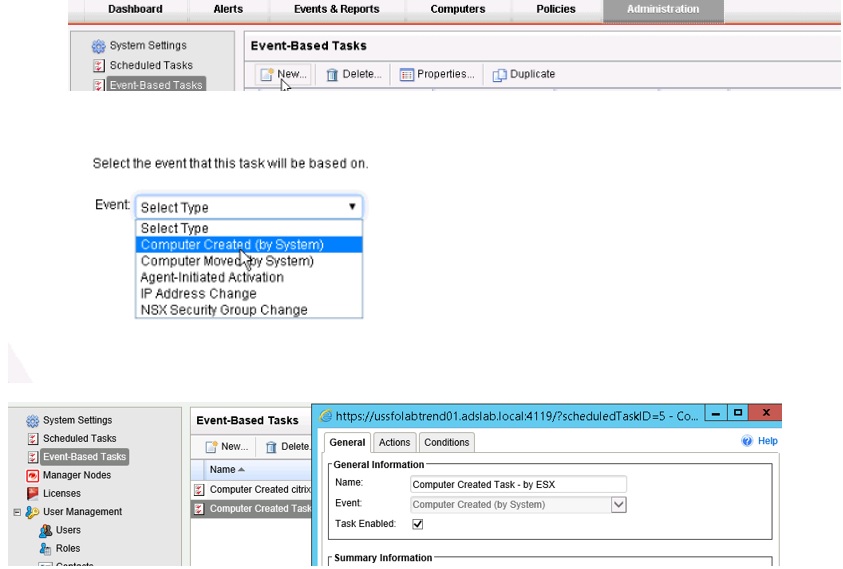

Create the event-based task in which any new VMs from the mentioned ESX host it will activate with the defined policy.

task

Make sure the Task is enabled and next go to the actions.

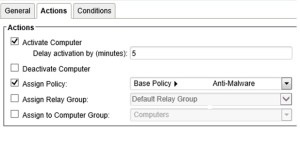

task1

Select the options according to the environment and next go to the conditions.

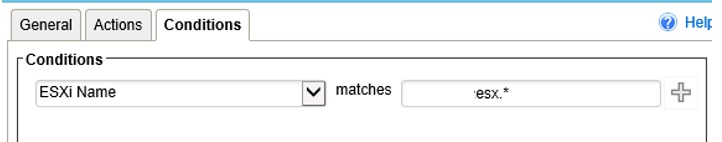

evaesx

Chosse ESX Name and use the wildcard ESX.* so that any ESX in that range will be consider.

Once the Task is configured , we can now go and implement the new VM using the Golden Image.

av

In the Trend DSM Console we can see the New VM is in activated status.

testvm

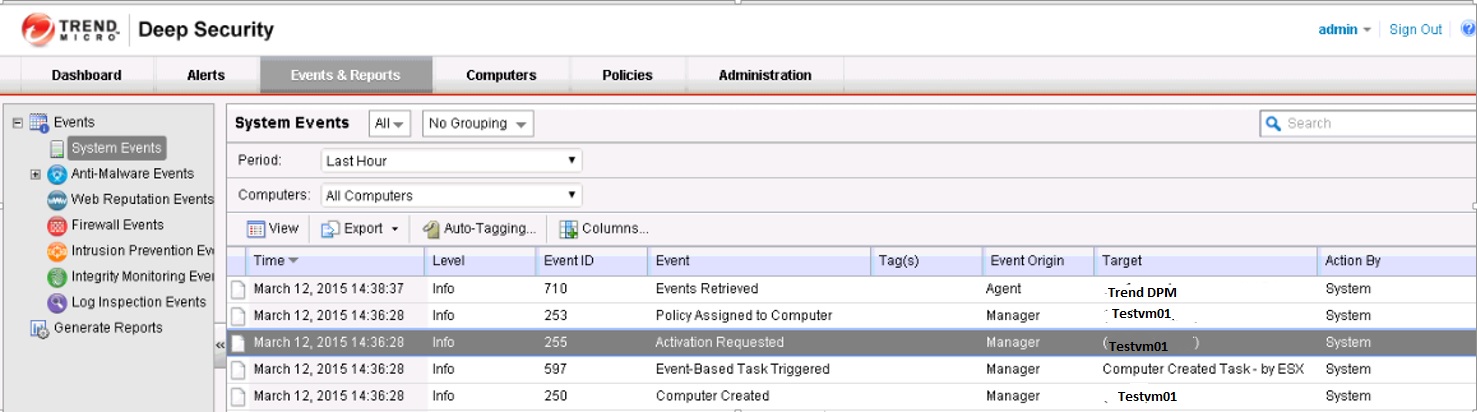

In the Events we can see the status of the activation.

test1

In my Next Blog we can see the Trend DSM SP1 Installation.
