Trend Micro Deep Security 9.5 ( Deploying Agentless Protection in an NSX Environment.) – Part 15

Pls check my previous blogs for the DSM , Relay Server , vShield End Point , Filter Driver,DSVA, DSA , SSP Server , Policies and Exclusions , Events and Monitoring , VMtools and VDI Environment with Agent Protection and Agentless Protection ,Trend DPM Service Pack and Relay Server Upgrdae and Trend Filter Driver and Deep Security Virtual Appliance .In this blog we can see the Agentless protection in an NSX-V Environment.

Before going in to the topic, pls check my other blogs also on the implementation of the NSX Manager 6.1.4 so that you can get more information on the same.

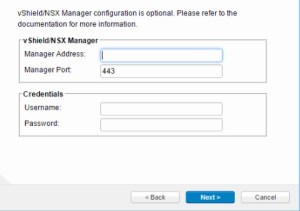

First add the vCenter to the DSM and when it prompt for the vShield or NSX Manager , provide the NSX Manager details.

1led

Preparing ESXi Servers

Before the Deep Security Virtual Appliance service can be deployed to your datacenter, your ESXi servers must first be prepared by installing the drivers necessary for network traffic inspection. This operation is performed on the cluster.Pls check my blog preparing the cluster and host for more info.

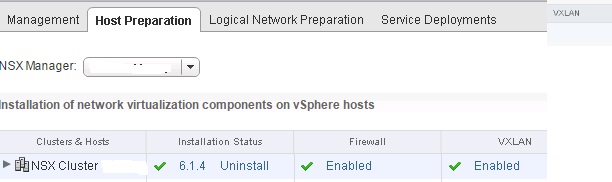

Login to the web client  Home – Networking and Security – Installation – Click Host preparation.

Un05titled

Pls check my blog for more details on the installation steps.

Installing the Guest Introspection Service.

Once the Host Preparation is done then the next step is to install the Guest Introspection Service.

To protect the VMs with Deep Security , We have to install the Guest Introspection Service on the cluster that contains the ESXi Servers.

Go to Home – Networking & Security – Installation – Service Deployment and click +

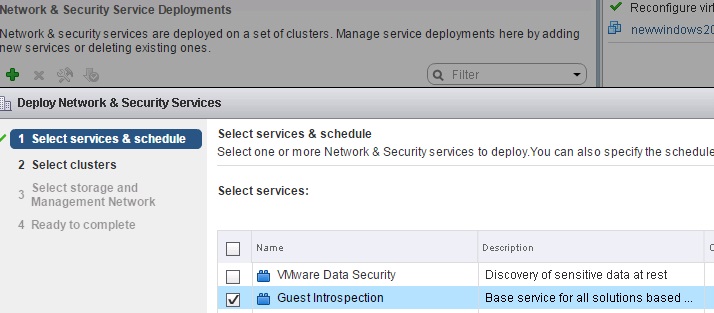

Select Service & Schedule – Select Guest Introspection:

pic1

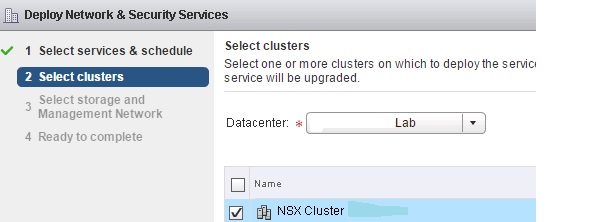

Select the Cluster

pic3

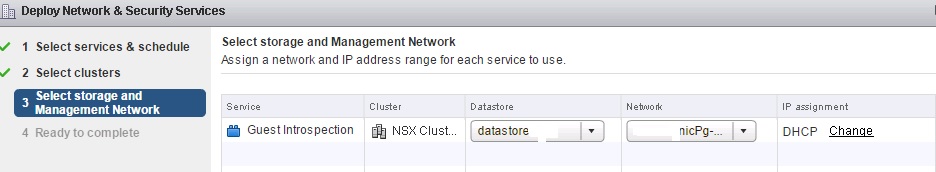

Choose the Storage and Network

pic4

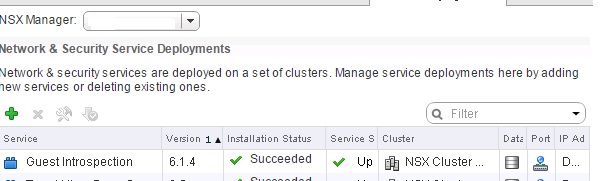

Click Finish.

pic5



Creating the NSX Security Groups:

VM must be organized into a NSX Security Group before a vSphere policy is assigned to them.

Go to the Security Groups – Home – Networking & Security – Service Composer and click the New Security Group icon.

pic6

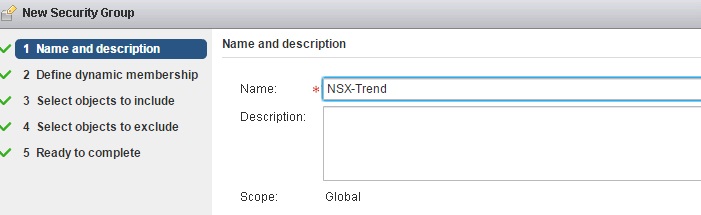

Give the name to the security Group.

pic7

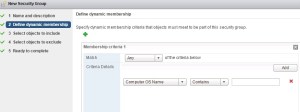

Define Dynamic Membership: If you wish to restrict membership in this group based on certain filtering criteria, enter those criteria here

pic9

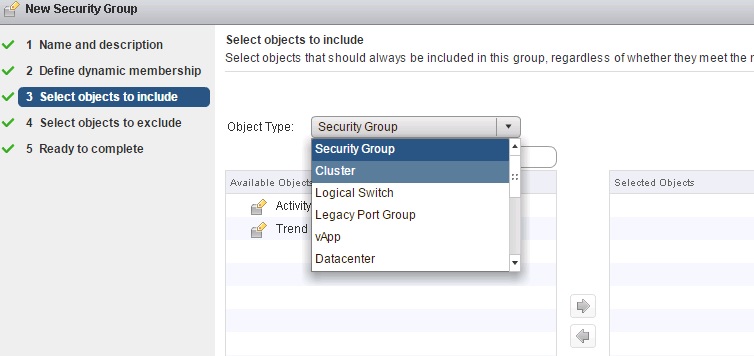

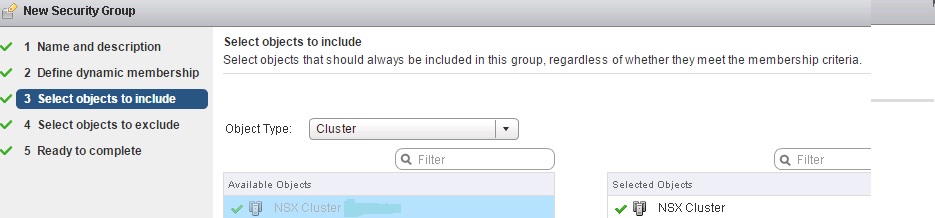

There are many ways to include or exclude objects in a NSX Security Group, but for this example, we will simply include the NSX cluster that contains the hosts and VMs that we want to protect. In the Select objects to include options, select Cluster from the Object Type menu, and move the NSX Cluster that contains the VMs to protect to the Selected Objects column.

pic10

pic11

Click Finish to create the new security group.

Install the Deep Security Service.

To provide agentless protection to the virtual machines on your ESXi servers, you must install the Deep Security service (the Deep Security Virtual Appliance) on your ESXi servers

Login to the web-client Home – Networking and Security – Installation – Service Deployments and click +

jled

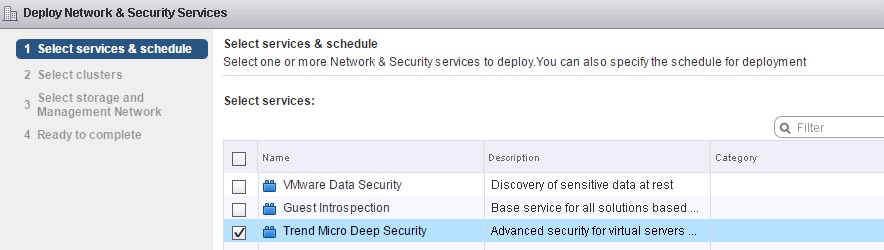

Select Services & Schedule : Select the Trend Micro Deep Security service:

pic15



Select the cluster

pic13

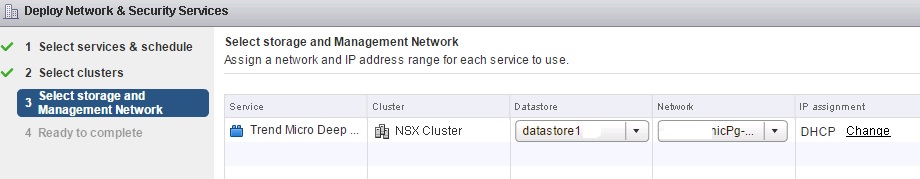

Select Storage and Network:

pic14

Click Next and Finish to complete.

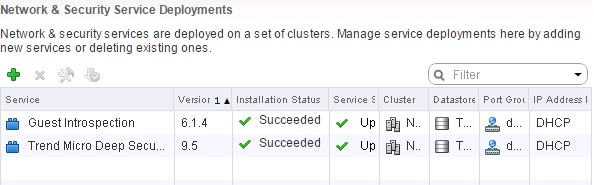

Once the deployment is completed , we will see the Deep Security Service in the list of Network & Security Service Deployment.

pic16

Create an NSX Security Policy:

Now we have to create the NSX Security Policy with Deep Security enabled as both an Endpoint Service and as a Network Introspection Service.

Go to Home – Networking and Security – Service Composer and Click on the Security Policies – Click New Security Policy.

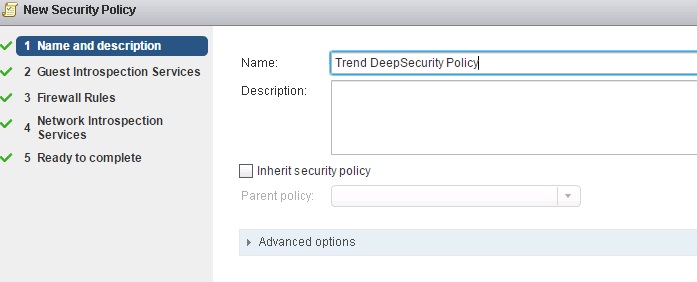

Name and Description: give a name to the new policy:

pic116

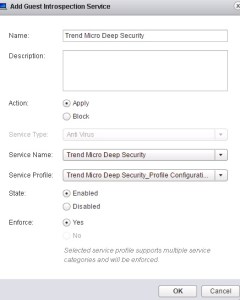

Guest Introspection Services : Click add to add an Enpoint Service and provide the name for the Endpoint Service.

pic17

Click Next and in Firewall Rules do make any changes .

Network Introspection Service :

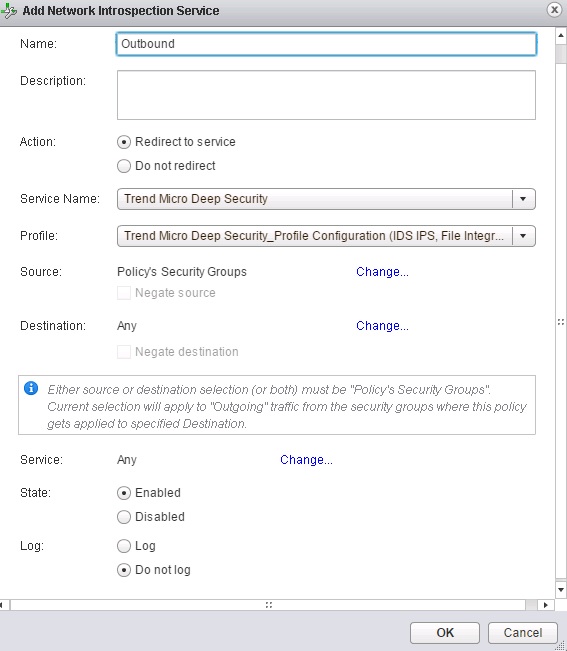

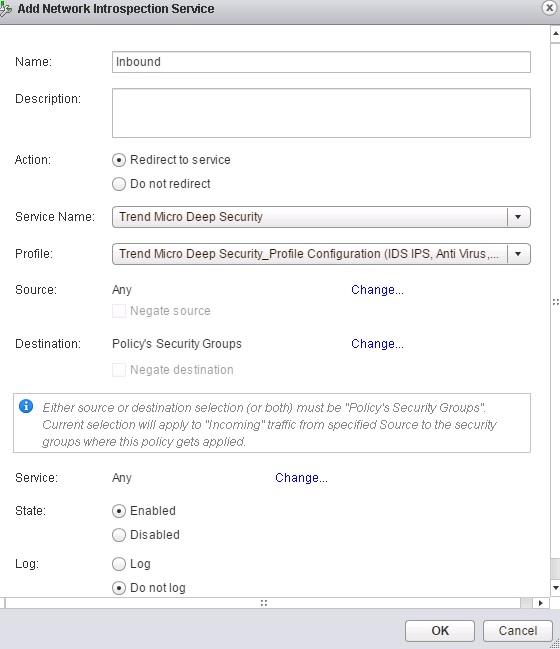

We need to add two Network Introspection Services to the Network Security Policy : Outbound \Inbound Traffic.

pic18    pic 19

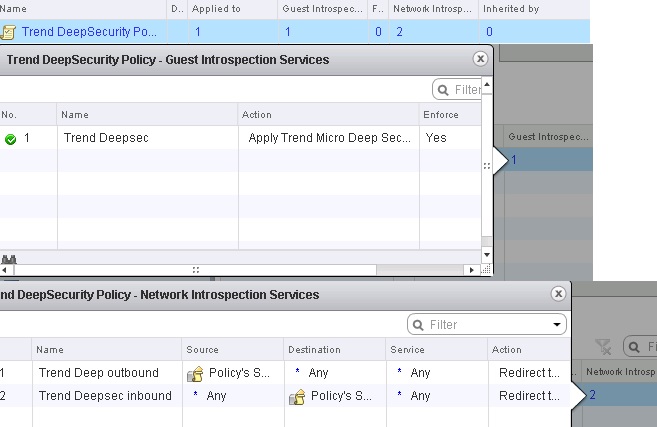

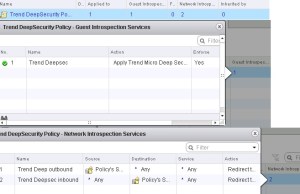

pic20



Once done click finish and now we have created the NSX Security Policy for Deep Security.

Apply the NSX Security Policy to the NSX Security Group

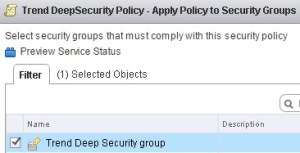

Go to Home – Networking & Security – Service Composer – select the newly created policy and click Apply the Security Policy icon.

pic21

The NSX Security Policy is now applied to the VMs in the NSX Security Group.

Adding Additional ESXi Servers to Your NSX Cluster After Deep Security Integration

Adding a new ESXi server to a NSX cluster that is protected by Deep Security must be done in the following sequence:

1. Add Host to the DataCenter but not directly to the cluster.

2. Connect the Host to the Distributed Switch.

3. Move the Host into the cluster. Once the Host is moved into the cluster, the Deep Security service will be deployed automatically.

Apply Deep Security Protection to Your VMs

Apply the Policy and also install the vShield Driver on the VMs and activate the same , Pls see my previous blogs on the same.

pic22

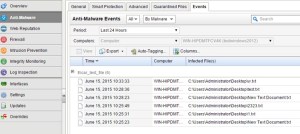

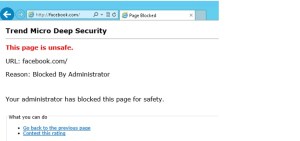

Tested the web url and also with Test Virus , result is below..

pic23 pic24
